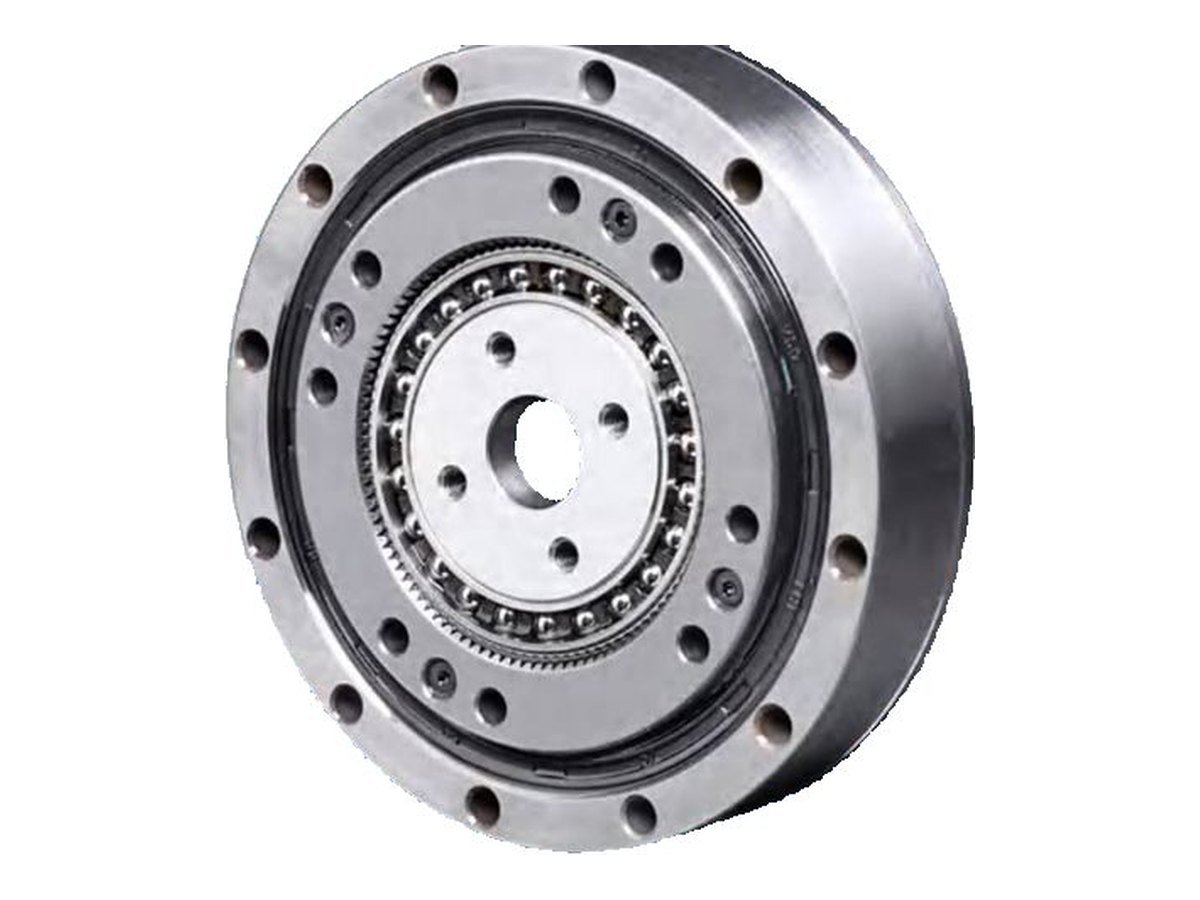

Harmonic driveModel THD-14HS
THD-14HS Harmonic Drive, Hat Slim Series, Size 14
Size 14 ultra-short hat-type harmonic drive. Ratios 50:1 to 100:1, rated torque 3.7–5.4 N·m at 2,000 rpm input, backlash under 20 arcsec. ₹33,343 + GST, same price for every ratio.
- Rated torque
- 3.7N·m
- Peak torque
- 12N·m
- Backlash
- 20 arcsec
- Efficiency
- —%
Overview
Ultra-short top-hat with keyed input and an integrated cross-roller bearing. Either spline can be the output.
Typical uses: exoskeleton and prosthetic joints, small cobot joints, pan-tilt surveillance heads, lab automation.
Ratings
| Ratio | Rated torque, N·m | Peak torque at start/stop, N·m | Max. average load torque, N·m | Momentary max. torque, N·m |
|---|---|---|---|---|
| 50:1 | 3.7 | 12 | 4.8 | 23 |
| 80:1 | 5.1 | 15 | 6.2 | 29 |
| 100:1 | 5.4 | 19 | 7.7 | 35 |
Input speed: up to 8,500 rpm maximum, 3,500 rpm average. Design life: 9,000 h at 50:1, 10,000 h at 80:1 and 100:1.
Ordering
Order code THD-14HS-XX, where XX is the ratio (for example THD-14HS-80). Price ₹33,343 per unit, ex-works Rajkot, excluding GST and freight, the same for every ratio. MOQ 1 piece; ask for volume pricing from 10 pieces. Send your motor model with the order and we confirm the coupling or adapter flange you need.
Ratings are typical values from manufacturer tests and are for guidance only. Real performance depends on installation, load, lubrication and environment; confirm your selection with Torqtron engineering. Photographs are representative of the series.
Technical specifications
| Series | THD-HS Hat Slim Series |
|---|---|
| Size | 14 |
| Construction | Housed unit, ultra-short, with keyed input and cross-roller bearing |
| Ratios | 50:1, 80:1, 100:1 |
| Order code | THD-14HS-XX (XX = ratio) |
| Rated torque at 2000 rpm | 3.7–5.4 N·m |
|---|---|
| Limit for repeated peak torque | 12–19 N·m |
| Limit for average torque | 4.8–7.7 N·m |
| Limit for momentary torque | 23–35 N·m |
| Backlash | < 20 arcsec |
| Max input speed | 8,500 rpm |
|---|---|
| Limit for average input speed | 3,500 rpm |
| Design life | 9,000 h at 50:1, 10,000 h at 80:1 and 100:1 |
|---|
| Lubrication | Grease, supplied pre-greased |
|---|
Values at rated input speed and room temperature. See the datasheet for test conditions and service-life basis.
Ratios, torque and price
| Ratio | Stages | Rated torque | Peak torque | Backlash | Efficiency | Price excl. GST | Availability |
|---|---|---|---|---|---|---|---|
| 50:1 | 1 | 3.7 N·m | 12 N·m | ≤ 20 arcsec | —% | ₹33,343 | Made to order |
| 80:1 | 1 | 5.1 N·m | 15 N·m | ≤ 20 arcsec | —% | ₹33,343 | Made to order |
| 100:1 | 1 | 5.4 N·m | 19 N·m | ≤ 20 arcsec | —% | ₹33,343 | Made to order |
Drawings and CAD
Drawings for this model are sent on request. Email us for the 2D drawing and STEP file.
Mounting and motor fit
- Input
- Keyed wave generator
- Output
- Circular spline or flexspline, on the integrated cross-roller bearing
- Lubrication
- Grease, supplied pre-greased
Need a different flange, housing or coupling?
We machine input flanges for any servo or stepper, custom output flanges, housings and couplings for this model.
Send your motor detailsQuestions about the THD-14HS
Is the price the same for every ratio?
Yes. The THD-14HS costs ₹33,343 per unit, ex-works Rajkot, excluding GST and freight, for any ratio (50:1 to 100:1). MOQ is 1 piece; ask for volume pricing from 10 pieces.
How do I order the THD-14HS?
Use order code THD-14HS-XX with XX replaced by the ratio, for example THD-14HS-80. Send the order code, quantity and your motor model, and we confirm the coupling or adapter flange you need.
Which part is the output?
Either one. Fix the circular spline and take the output from the flexspline, or fix the flexspline and take it from the circular spline.
