Harmonic driveModel THD-14HB
THD-14HB Harmonic Drive, Hollow Bore Series, Size 14
Size 14 hollow-shaft harmonic drive. Ratios 50:1 to 120:1, rated torque 5.4–7.8 N·m at 2,000 rpm input, backlash under 20 arcsec. ₹33,343 + GST, same price for every ratio.
- Rated torque
- 5.4N·m
- Peak torque
- 18N·m
- Backlash
- 20 arcsec
- Efficiency
- —%
Overview
Large through-hole down the centre for cables, air lines, shafts or laser beams: the clean way to route services through a joint.
Typical uses: robot joints with internal cabling, rotary tables with pneumatic pass-through, humanoid shoulder and hip joints, camera and LiDAR gimbals.
Ratings
| Ratio | Rated torque, N·m | Peak torque at start/stop, N·m | Max. average load torque, N·m | Momentary max. torque, N·m |
|---|---|---|---|---|
| 50:1 | 5.4 | 18 | 6.9 | 35 |
| 80:1 | 7.8 | 23 | 11 | 47 |
| 100:1 | 7.8 | 28 | 11 | 54 |
| 120:1 | 7.8 | 28 | 11 | 54 |
Input speed: up to 8,500 rpm maximum, 3,500 rpm average. Design life: 10,000 h at 50:1, 15,000 h at 80:1 and above.
Ordering
Order code THD-14HB-XX, where XX is the ratio (for example THD-14HB-80). Price ₹33,343 per unit, ex-works Rajkot, excluding GST and freight, the same for every ratio. MOQ 1 piece; ask for volume pricing from 10 pieces. Send your motor model with the order and we confirm the coupling or adapter flange you need.

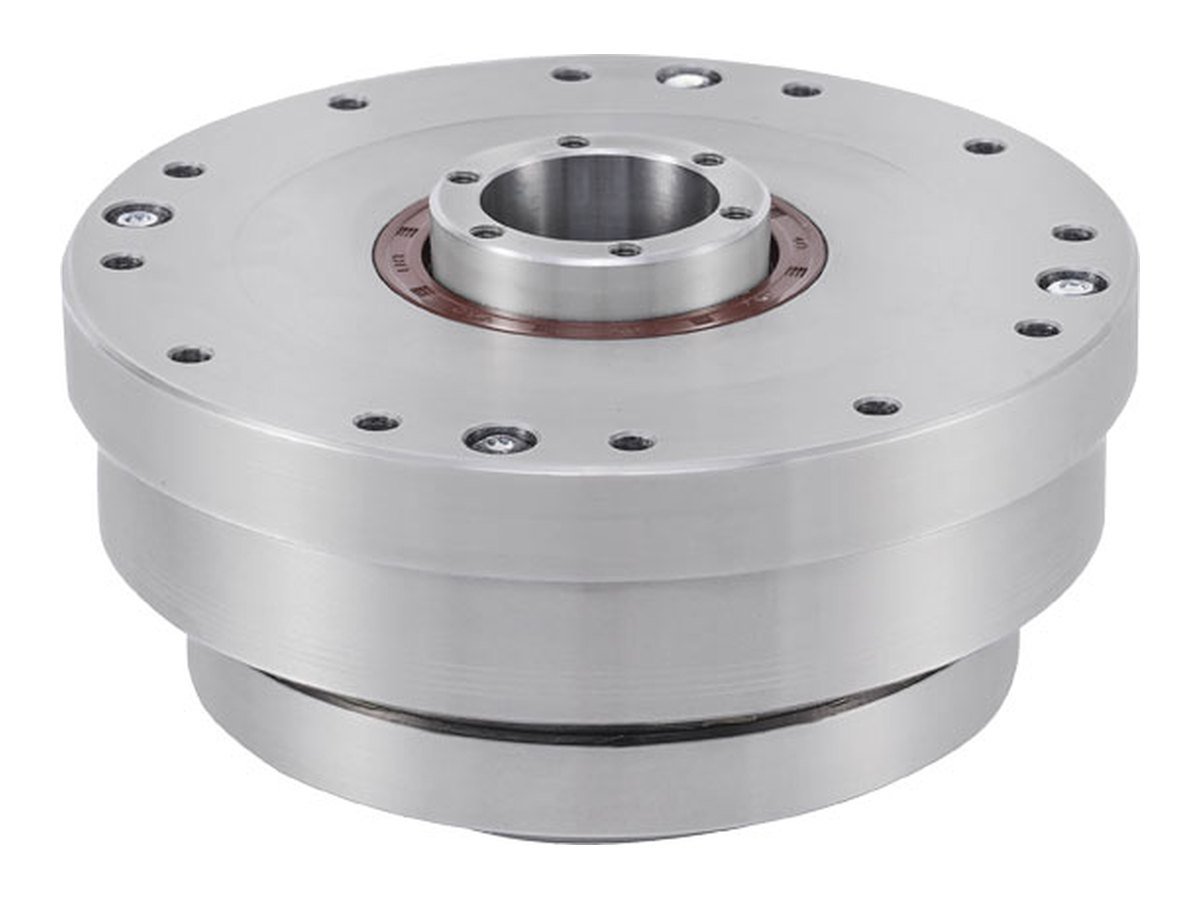

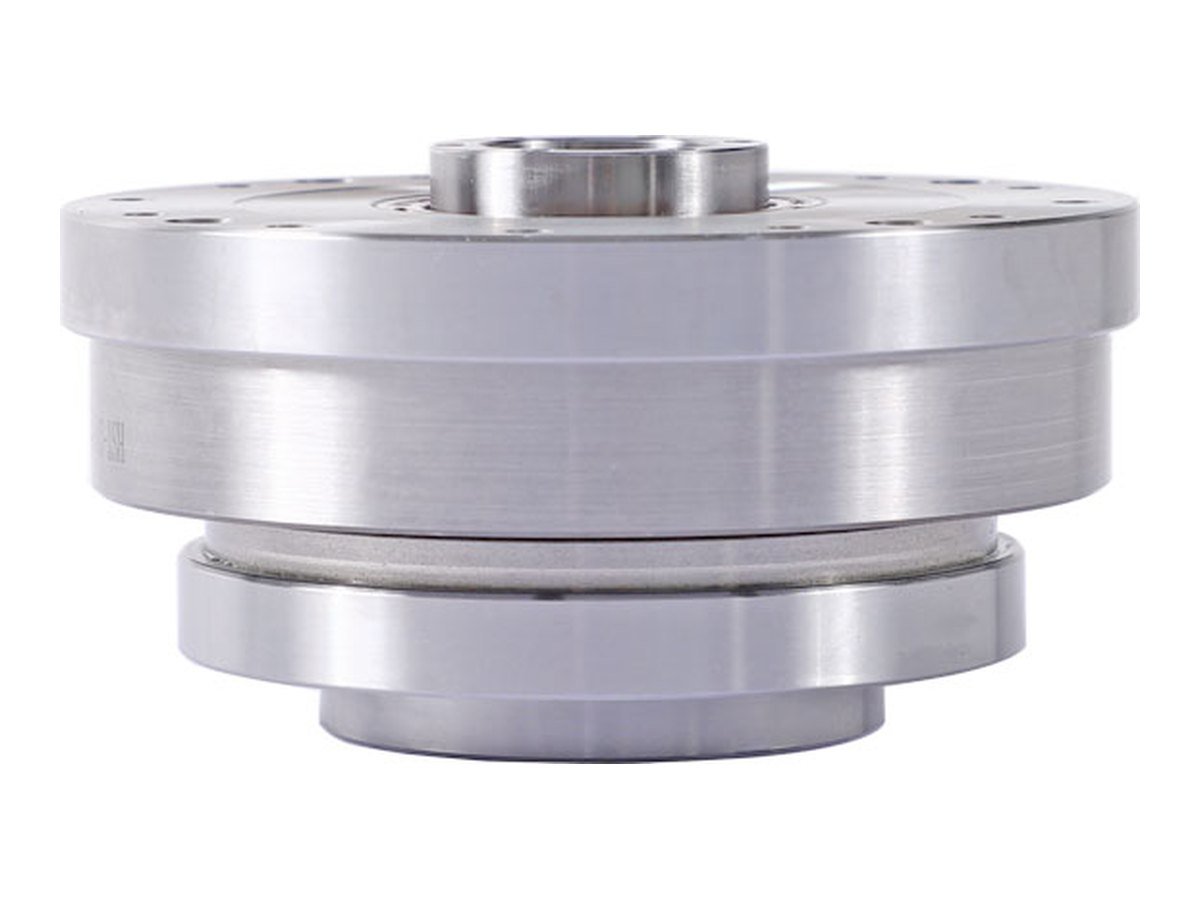

Ratings are typical values from manufacturer tests and are for guidance only. Real performance depends on installation, load, lubrication and environment; confirm your selection with Torqtron engineering. Photographs are representative of the series.
Technical specifications
| Series | THD-HB Hollow Bore Series |
|---|---|
| Size | 14 |
| Construction | Sealed housed unit with hollow shaft and output bearing |
| Ratios | 50:1, 80:1, 100:1, 120:1 |
| Order code | THD-14HB-XX (XX = ratio) |
| Rated torque at 2000 rpm | 5.4–7.8 N·m |
|---|---|
| Limit for repeated peak torque | 18–28 N·m |
| Limit for average torque | 6.9–11 N·m |
| Limit for momentary torque | 35–54 N·m |
| Backlash | < 20 arcsec |
| Max input speed | 8,500 rpm |
|---|---|
| Limit for average input speed | 3,500 rpm |
| Design life | 10,000 h at 50:1, 15,000 h at 80:1 and above |
|---|
| Lubrication | Grease, supplied pre-greased |
|---|
Values at rated input speed and room temperature. See the datasheet for test conditions and service-life basis.
Ratios, torque and price
| Ratio | Stages | Rated torque | Peak torque | Backlash | Efficiency | Price excl. GST | Availability |
|---|---|---|---|---|---|---|---|
| 50:1 | 1 | 5.4 N·m | 18 N·m | ≤ 20 arcsec | —% | ₹33,343 | Made to order |
| 80:1 | 1 | 7.8 N·m | 23 N·m | ≤ 20 arcsec | —% | ₹33,343 | Made to order |
| 100:1 | 1 | 7.8 N·m | 28 N·m | ≤ 20 arcsec | —% | ₹33,343 | Made to order |
| 120:1 | 1 | 7.8 N·m | 28 N·m | ≤ 20 arcsec | —% | ₹33,343 | Made to order |
Drawings and CAD
Drawings for this model are sent on request. Email us for the 2D drawing and STEP file.
Mounting and motor fit
- Input
- Hollow wave generator
- Output
- Output bearing flange with hollow bore
- Lubrication
- Grease, supplied pre-greased
Need a different flange, housing or coupling?
We machine input flanges for any servo or stepper, custom output flanges, housings and couplings for this model.
Send your motor detailsQuestions about the THD-14HB
Is the price the same for every ratio?
Yes. The THD-14HB costs ₹33,343 per unit, ex-works Rajkot, excluding GST and freight, for any ratio (50:1 to 120:1). MOQ is 1 piece; ask for volume pricing from 10 pieces.
How do I order the THD-14HB?
Use order code THD-14HB-XX with XX replaced by the ratio, for example THD-14HB-80. Send the order code, quantity and your motor model, and we confirm the coupling or adapter flange you need.
What can pass through the hollow bore?
Cables, air lines, shafts or a laser beam. The bore diameter for each size is on the delivery drawing; ask for it before you lay out the joint.
