Harmonic driveModel THD-17SS

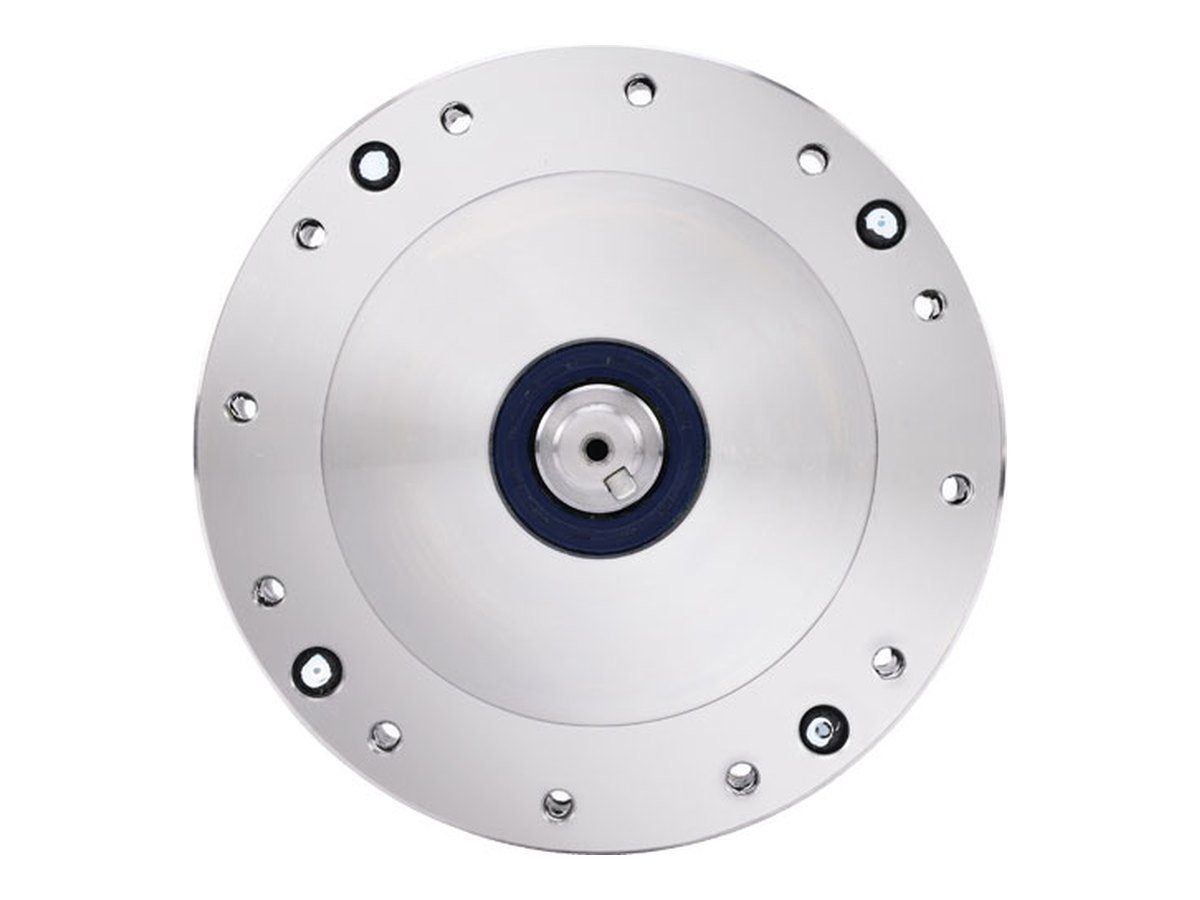

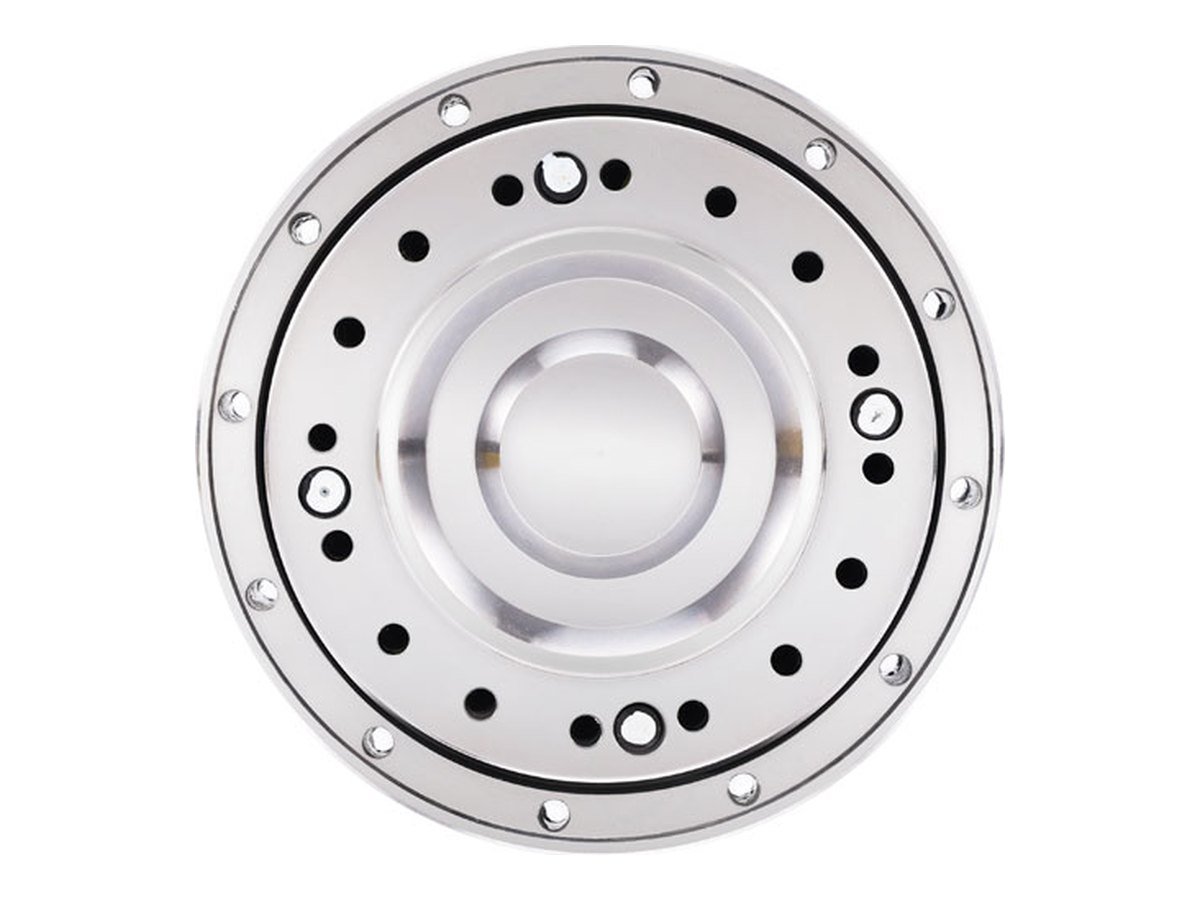

THD-17SS Harmonic Drive, Solid Shaft Series, Size 17
Size 17 solid input shaft harmonic drive. Ratios 50:1 to 120:1, rated torque 16–24 N·m at 2,000 rpm input, backlash under 20 arcsec. ₹34,931 + GST, same price for every ratio.
- Rated torque
- 16N·m
- Peak torque
- 34N·m
- Backlash
- 20 arcsec
- Efficiency
- —%
Overview
Sealed unit with a solid input shaft. Couple it to any servo or stepper with a standard coupling or a belt.
Typical uses: retrofits of existing machines, belt and pulley driven axes, test rigs and dynamometers, packaging machine indexers.
Ratings
| Ratio | Rated torque, N·m | Peak torque at start/stop, N·m | Max. average load torque, N·m | Momentary max. torque, N·m |
|---|---|---|---|---|
| 50:1 | 16 | 34 | 26 | 70 |
| 80:1 | 22 | 43 | 27 | 87 |
| 100:1 | 24 | 54 | 39 | 110 |
| 120:1 | 24 | 54 | 39 | 86 |
Input speed: up to 7,300 rpm maximum, 3,500 rpm average. Design life: 10,000 h at 50:1, 15,000 h at 80:1 and above.
Ordering
Order code THD-17SS-XX, where XX is the ratio (for example THD-17SS-80). Price ₹34,931 per unit, ex-works Rajkot, excluding GST and freight, the same for every ratio. MOQ 1 piece; ask for volume pricing from 10 pieces. Send your motor model with the order and we confirm the coupling or adapter flange you need.
Ratings are typical values from manufacturer tests and are for guidance only. Real performance depends on installation, load, lubrication and environment; confirm your selection with Torqtron engineering. Photographs are representative of the series.
Technical specifications
| Series | THD-SS Solid Shaft Series |
|---|---|
| Size | 17 |
| Construction | Sealed housed unit with solid input shaft |
| Ratios | 50:1, 80:1, 100:1, 120:1 |
| Order code | THD-17SS-XX (XX = ratio) |
| Rated torque at 2000 rpm | 16–24 N·m |
|---|---|
| Limit for repeated peak torque | 34–54 N·m |
| Limit for average torque | 26–39 N·m |
| Limit for momentary torque | 70–110 N·m |
| Backlash | < 20 arcsec |
| Max input speed | 7,300 rpm |
|---|---|
| Limit for average input speed | 3,500 rpm |
| Design life | 10,000 h at 50:1, 15,000 h at 80:1 and above |
|---|
| Lubrication | Grease, supplied pre-greased |
|---|
Values at rated input speed and room temperature. See the datasheet for test conditions and service-life basis.
Ratios, torque and price
| Ratio | Stages | Rated torque | Peak torque | Backlash | Efficiency | Price excl. GST | Availability |
|---|---|---|---|---|---|---|---|
| 50:1 | 1 | 16 N·m | 34 N·m | ≤ 20 arcsec | —% | ₹34,931 | Made to order |
| 80:1 | 1 | 22 N·m | 43 N·m | ≤ 20 arcsec | —% | ₹34,931 | Made to order |
| 100:1 | 1 | 24 N·m | 54 N·m | ≤ 20 arcsec | —% | ₹34,931 | Made to order |
| 120:1 | 1 | 24 N·m | 54 N·m | ≤ 20 arcsec | —% | ₹34,931 | Made to order |
Drawings and CAD
Drawings for this model are sent on request. Email us for the 2D drawing and STEP file.
Mounting and motor fit
- Input
- Solid input shaft for a coupling or pulley
- Output
- Output flange on the sealed housing
- Lubrication
- Grease, supplied pre-greased
Need a different flange, housing or coupling?
We machine input flanges for any servo or stepper, custom output flanges, housings and couplings for this model.
Send your motor detailsQuestions about the THD-17SS
Is the price the same for every ratio?
Yes. The THD-17SS costs ₹34,931 per unit, ex-works Rajkot, excluding GST and freight, for any ratio (50:1 to 120:1). MOQ is 1 piece; ask for volume pricing from 10 pieces.
How do I order the THD-17SS?
Use order code THD-17SS-XX with XX replaced by the ratio, for example THD-17SS-80. Send the order code, quantity and your motor model, and we confirm the coupling or adapter flange you need.
How do I connect the motor?
Through a standard shaft coupling, or a belt and pulley on the solid input shaft. We can supply a custom coupling bored to both shafts.
